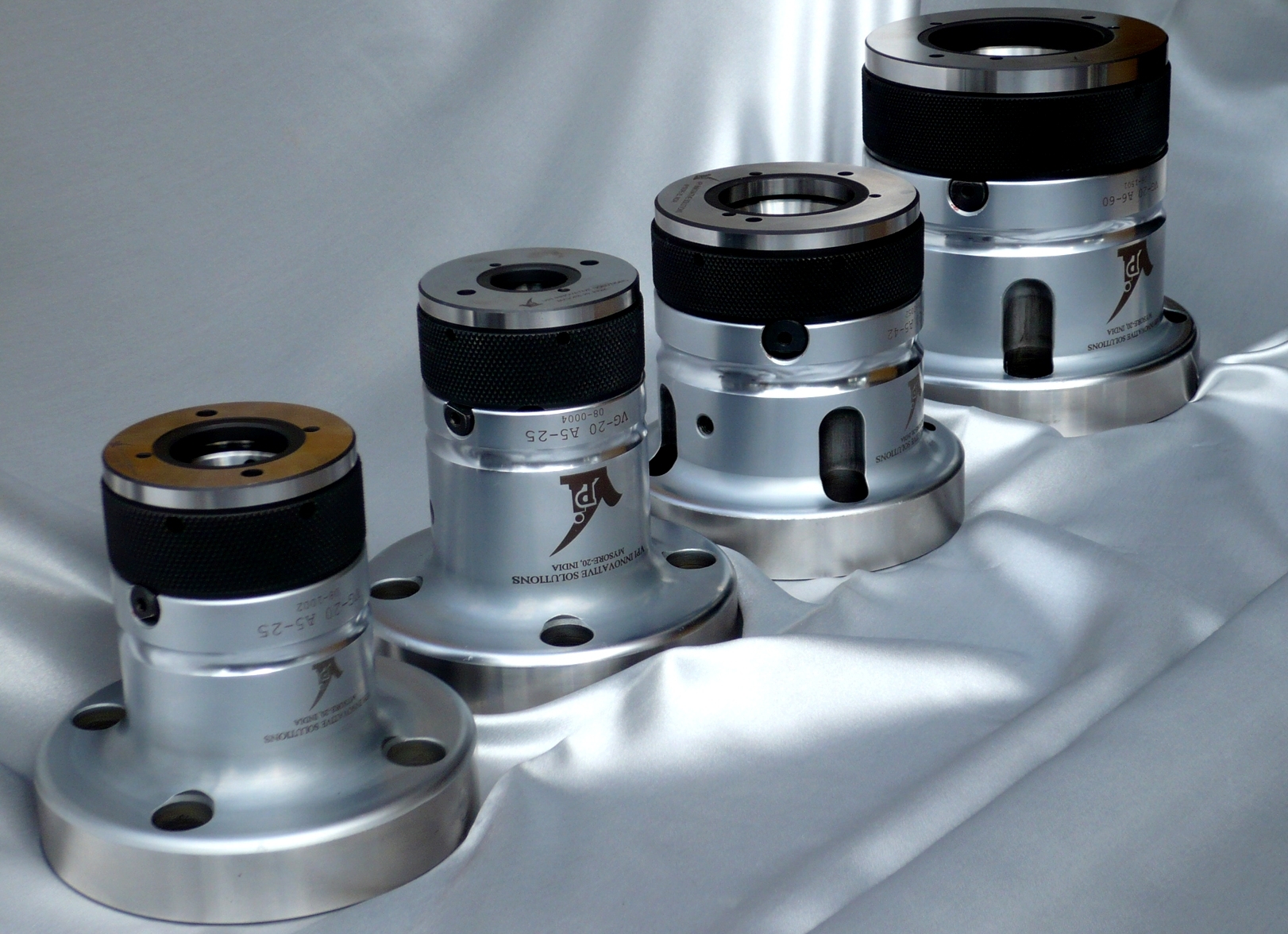

VG-20 CNC Collet Chuck
Precision-engineered CNC Collet Chuck designed for accuracy, rigidity, and durability in high-speed machining applications
Key Features
- High Precision: Exceptional concentricity for precision turning operations with micron-level accuracy
- Optimized Design: Lightweight, compact structure for fast acceleration and minimal vibration
- Superior Durability: Built with premium materials and precision engineering for long-lasting performance
- Versatile Compatibility: Works seamlessly with a wide range of CNC lathes and machining centers
- Flexible Applications: Ideal for both high-volume production and precision toolroom environments
Technical Specifications
| Model | Max RPM | Clamping Range | Weight | Mounting Type |
|---|---|---|---|---|
| VG-20 | 4500 RPM | Ø16mm - Ø50mm | 3.5 kg | A2-5 Spindle Nose |
VG-20 Collet Chuck Full Specifications
| Model | Spindle | Max RPM | Weight (kg) | Operating Force (kN/kgf) | Clamping Force (kN/kgf) | Sleeve Stroke (mm) | Min-Max l (mm) | Min-Max n (mm) | Min-Max u (mm) |
|---|---|---|---|---|---|---|---|---|---|
| VG-20 A8-80 | A2-8 | 3500 | 23 | 29.4 (3000) | 63.7 (6500) | 10 | 5 - 60 | 8 - 52 | 7 - 42 |

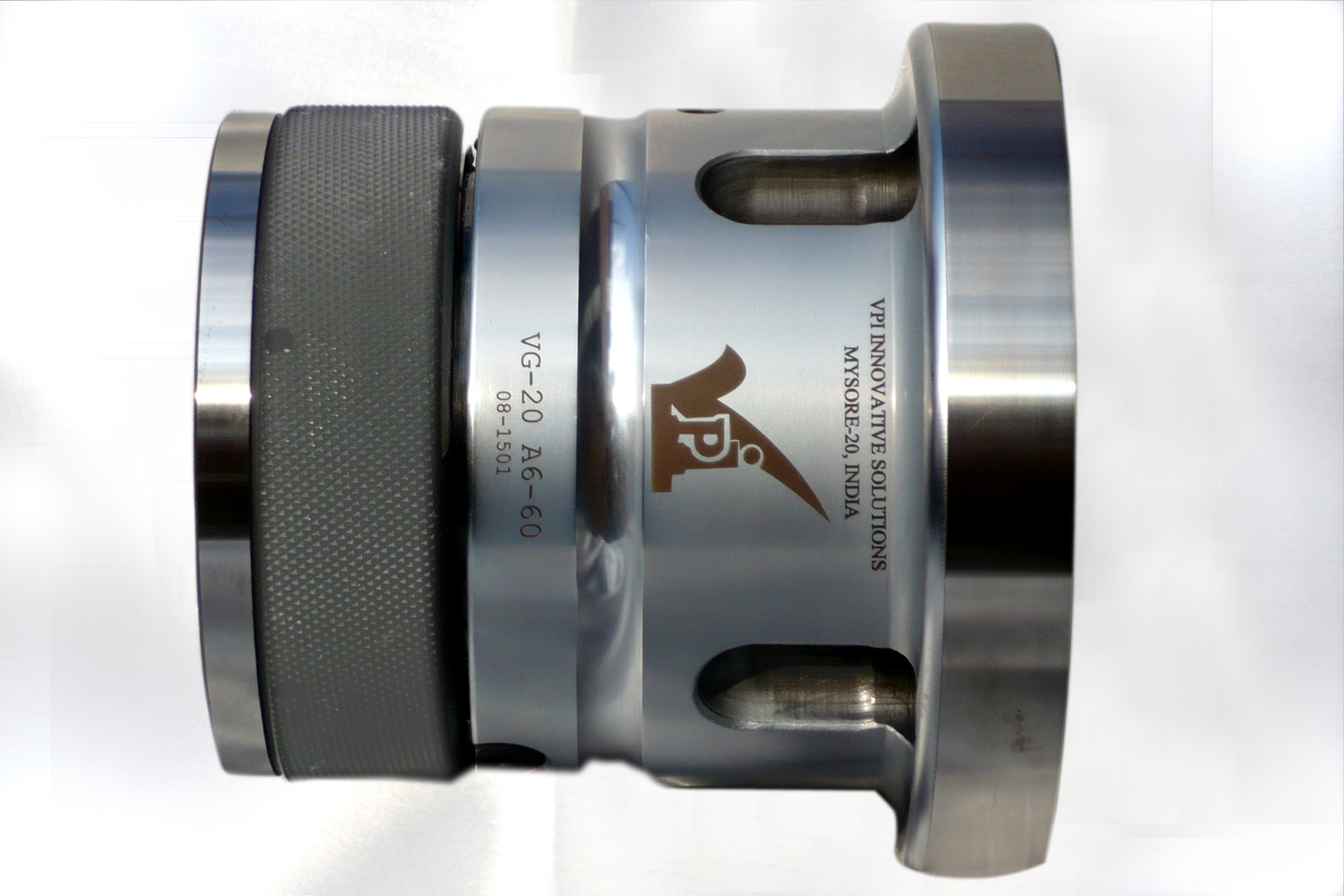

| VG-20 A6-60 | A2-6 | 4000 | 11.35 | 19.6 (2000) | 42.1 (4300) | 3 | 2 - 25 | 3 - 19 | 4 - 22 |
| VG-20 FL 220-80 | 220 (h6) | 6000 | 5.5 | 29.4 (3000) | 52.9 (5400) | 8 | 3 - 42 | 5 - 28 | 7 - 42 |
| VG-20 FL 110-25 | 110 mm (h6) | 5000 | 14.1 | 33 (7260) | 63.7 (6500) | 10 | 5 - 60 | 8 - 52 | 7 - 66 |
| VG-20 FL 170-42 | 170 mm (h6) | 4000 | 16 | 33 (7260) | 57.75 (12705) | 10 | 10 - 80 | 8 - 68 | 5 - 36 |
| VG-20 FL 170-60 | 170 mm (h6) | 3500 | 23 | 24.5 (2500) | 57.75 (12705) | 10 | 10 - 80 | 8 - 68 | 7 - 66 |
| VG-20 A5-42 | A2-5 | 5000 | 6.35 | 19.6 (2000) | 52.9 (5400) | 8 | 3 - 42 | 5 - 28 | 5 - 36 |
| VG-20 A4-25 | A2-4 | 6000 | 5.1 | 29.4 (3000) | 42.1 (4300) | 3 | 2 - 25 | 3 - 19 | 4 - 22 |
| VO-20 A6-60 | M83 x 2.0p | 69 | M87 x 1.5p | 106.36 | 133 | 165 | 8.6 | 155 | 27 |
| VG-20 A8-80 | M80 x 2.0p | 91 | M100 x 1.5 | 139.7 | 171 | 220 | 8.6 | 155 | 36 |
Applications
Manufacturing Industries
- Automotive components
- Aerospace parts
- Medical devices
- General machining
Machining Operations
- Precision turning
- High-speed machining
- Small batch production
- Mass production
- Prototype development
Request More Information
Interested in the VG-20 CNC Collet Chuck for your manufacturing needs? Contact our team for pricing, availability, and technical support.
